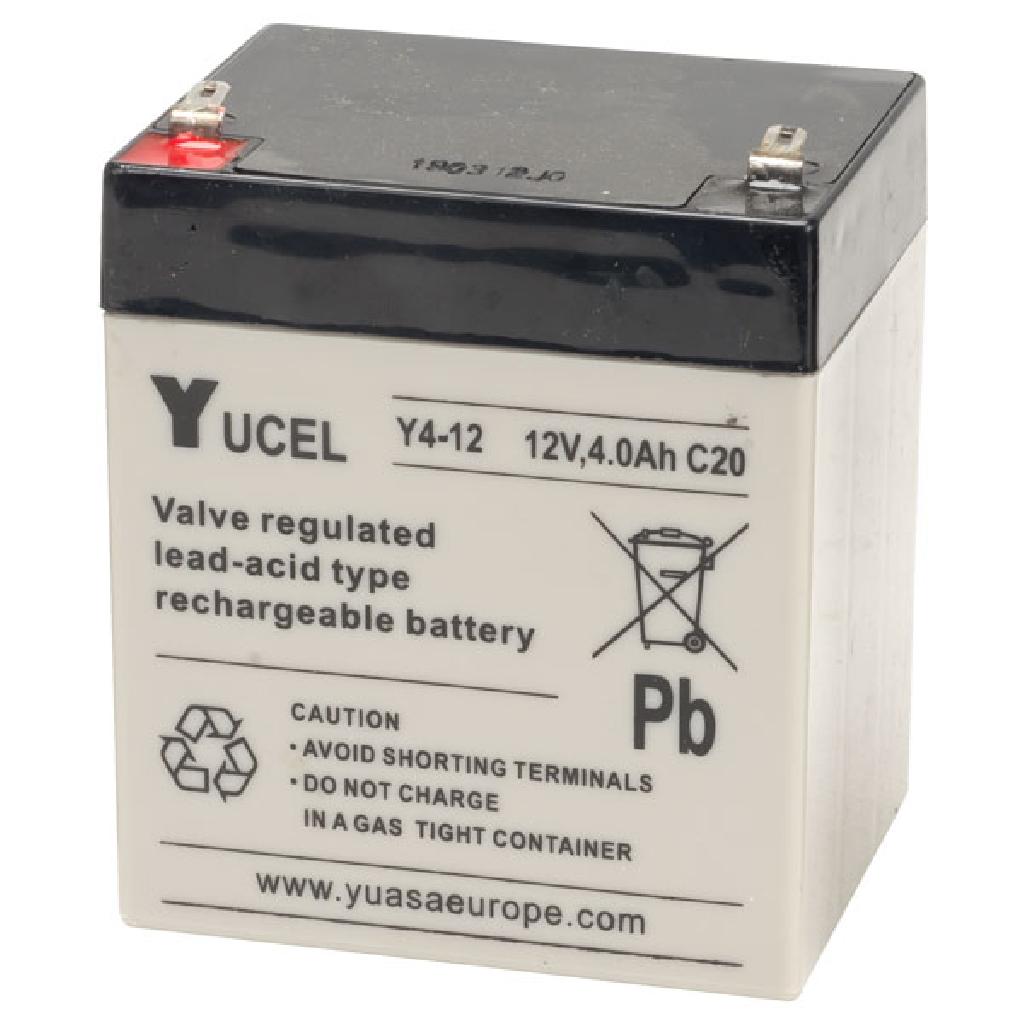

Yucel 4-12 (12V 4Ah) Yuasa Standby VRLA Rechargeable Battery
Please contact us to get the latest price for this product

1 in-stock.

Enter your postcode to get a quick quote for postage!

Tell a friend. Enter their email address here!

The Yucel range of batteries are Yuasa's budget range of batteries. They are compact, low maintenance, cost effective and an excellent solution for smaller applications The Yucel range is constructed to ensure there is no leakage of electrolyte from the case or materials using a strictly controlled sealing technique and manufacturing process. If you are looking for a cost effective, small sealed lead acid battery then you need look no further than the Yucel battery range.


SPECIFICATIONS
WARRANTY12 Months
NameYucel 4-12 (12V 4Ah) Yuasa Standby VRLA Rechargeable Battery
CodeY4-12
Nominal voltage12
AH4
AH RATING20-hr rate Capacity to 1.75VPC at 20°C
DIMENSIONS
Length90
Width70
Height101
Height over Terminals107
Weight1.6

TERMINAL TYPE
Terminal TypeF 4.75
OPERATING TEMPERATURE RANGE
Storage (in fully charged condition)-20°C to +60°C
Charge-15°C to +50°C
Discharge-20°C to +60°C
STORAGE
Capacity loss per month at 20°C (approx)3
CASE MATERIAL
Standard OptionABS (UL.94:HB)
Flame retardant option (FR)ABS (UL94:V0)
CHARGING
Float charge voltage at 20°C2.275 (±1%)
Float charge voltage at 20°C2.275 (±1%)
Float Charge voltage temperature correction factor (for variations from the standard 20°C)-3
Cyclic (or Boost) charge at 20°C2.42 (±3%)
Cyclic (or Boost) charge at 20°C2.42 (±3%)
Cyclic Charge voltage temperature correction factor (for variations from the standard 20°C)-4
Cyclic (or Boost) charge current limit 1
MAXIMUM DISCHARGE CURRENT
1 second40
IMPEDANCE
Measured at 1 kHz40
