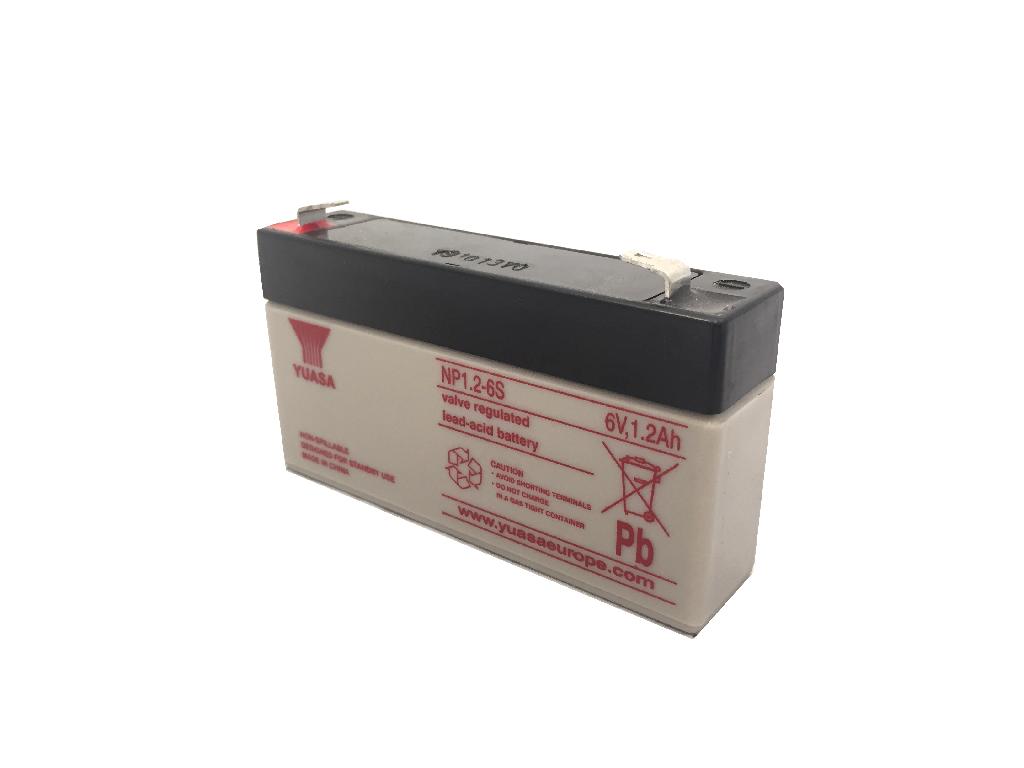

NP1.2-6 (6V 1.2Ah) Yuasa General Purpose VRLA Rechargeable Battery
£11.25 (ex vat)
£13.50 (inc vat)

1 in-stock.

Enter your postcode to get a quick quote for postage!

Tell a friend. Enter their email address here!

Yuasa NP batteries utilise the latest advance design Oxygen Recombination Technology. Yuasa have applied their 80 years experience in the lead acid battery field to produce the optimum design of Sealed Valve Regulated Lead Acid batteries. Yuasa NP batteries are the most reliable batteries in the world, which is why industry choose Yuasa over any other battery for security, fire, emergency lighting and uninterruptible power source (UPS) applications.


SPECIFICATIONS
WARRANTY12 Months
NameNP1.2-6 (6V 1.2Ah) Yuasa General Purpose VRLA Rechargeable Battery
CodeNP1.2-6
LiteratureNP1.2-6DataSheet.pdf
Nominal voltage6
AH1.2
AH RATING20-hr rate Capacity to 1.75VPC at 20°C
DIMENSIONS
Length97
Width25
Height over Terminals54.5
Weight0.31

TERMINAL TYPE
Terminal TypeF 4.7
OPERATING TEMPERATURE RANGE
Storage (in fully charged condition)-20°C to +60°C
Charge-15°C to +50°C
Discharge-20°C to +60°C
STORAGE
Capacity loss per month at 20°C (approx)3
CASE MATERIAL
Standard OptionABS (UL.94:HB)
Flame retardant option (FR)ABS (UL94:V0)
CHARGING
Float charge voltage at 20°C2.275 (±1%)
Float charge voltage at 20°C2.275 (±1%)
Float Charge voltage temperature correction factor (for variations from the standard 20°C)-3
Cyclic (or Boost) charge at 20°C2.42 (±3%)
Cyclic (or Boost) charge at 20°C2.42 (±3%)
Cyclic Charge voltage temperature correction factor (for variations from the standard 20°C)-4
Cyclic (or Boost) charge current limit 0.3
MAXIMUM DISCHARGE CURRENT
1 second36
1 minute12
IMPEDANCE
Measured at 1 kHz60

The following PDF(s) contain information pertaining to this product

NP1.2-6DataSheet.pdf
