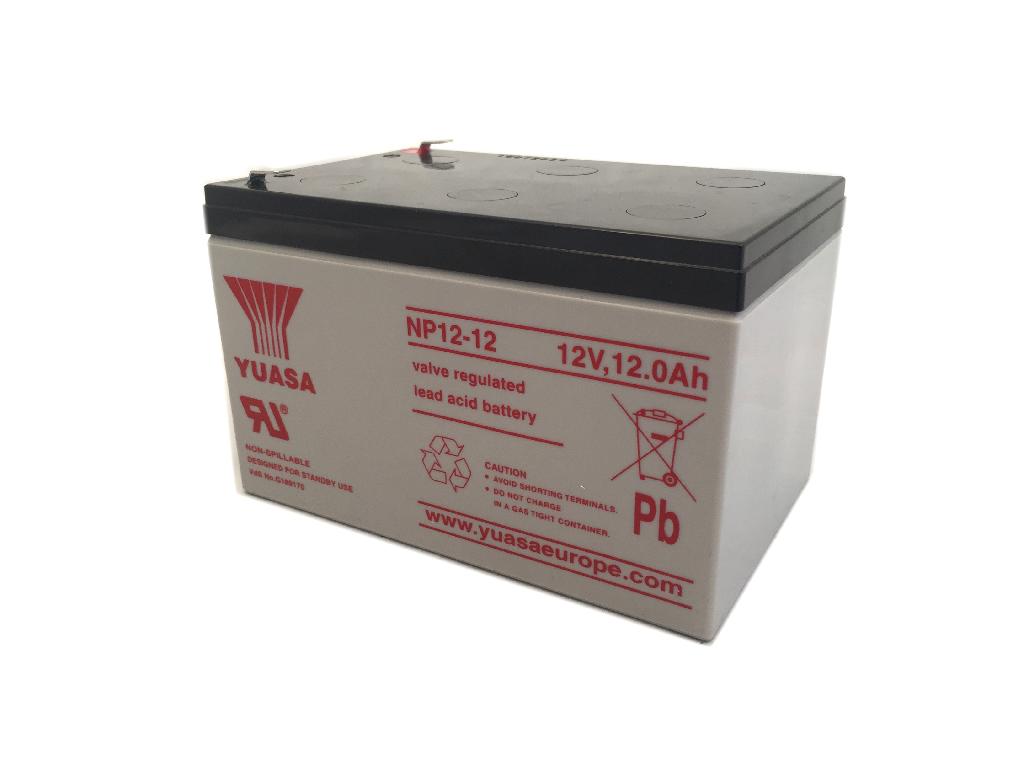

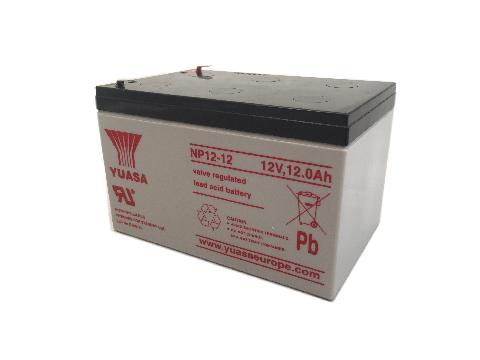

NP12-12 (12V 12Ah) Yuasa General Purpose VRLA Rechargeable Battery
£23.50 (ex vat)
£28.20 (inc vat)

1 in-stock.

Enter your postcode to get a quick quote for postage!

Tell a friend. Enter their email address here!

Yuasa NP batteries utilise the latest advance design Oxygen Recombination Technology. Yuasa have applied their 80 years experience in the lead acid battery field to produce the optimum design of Sealed Valve Regulated Lead Acid batteries. Yuasa NP batteries are the most reliable batteries in the world, which is why industry choose Yuasa over any other battery for security, fire, emergency lighting and uninterruptible power source (UPS) applications. Sunrise medical little gem mobility scooter, Pride go-go lx traveller, ultra lx go-go traveller, Elite traveller go-go traveller, Pride shoprider, Medicore rio 4 pioneer,


SPECIFICATIONS
WARRANTY12 Months
NameNP12-12 (12V 12Ah) Yuasa General Purpose VRLA Rechargeable Battery
CodeNP12-12
LiteratureNP_Series march 09.pdf
Nominal voltage12
AH12
AH RATING20-hr rate Capacity to 1.75VPC at 20°C
DIMENSIONS
Length151
Width98
Height95
Height over Terminals97.5
Weight4.05

TERMINAL TYPE
Terminal TypeF 6.35
OPERATING TEMPERATURE RANGE
Storage (in fully charged condition)-20°C to +60°C
Charge-15°C to +50°C
Discharge-20°C to +60°C
STORAGE
Capacity loss per month at 20°C (approx)3
CASE MATERIAL
Standard OptionABS (UL.94:HB)
Flame retardant option (FR)ABS (UL94:V0)
CHARGING
Float charge voltage at 20°C2.275 (±1%)
Float charge voltage at 20°C2.275 (±1%)
Float Charge voltage temperature correction factor (for variations from the standard 20°C)-3
Cyclic (or Boost) charge at 20°C2.42 (±3%)
Cyclic (or Boost) charge at 20°C2.42 (±3%)
Cyclic Charge voltage temperature correction factor (for variations from the standard 20°C)-4
Cyclic (or Boost) charge current limit 3
MAXIMUM DISCHARGE CURRENT
1 second360
1 minute75
SHORT-CIRCUIT CURRENT & INTERNAL RESISTANCE
Internal resistance (according to EN IEC 60896-21)44.39
Short-Circuit current (according to EN IEC 60896-21)320
IMPEDANCE
Measured at 1 kHz18

The following PDF(s) contain information pertaining to this product

NP_Series march 09.pdf
