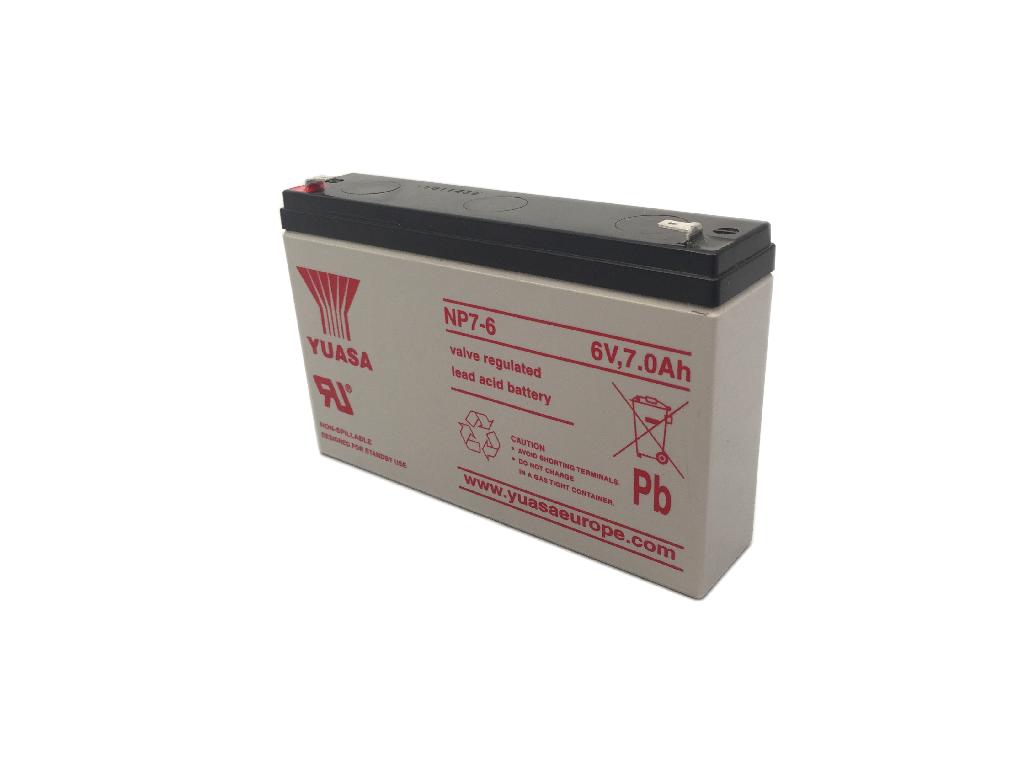

NP7-6 (6V 7Ah) Yuasa General Purpose VRLA Rechargeable Battery
£16.76 (ex vat)
£20.11 (inc vat)
1 in-stock.
Enter your postcode to get a quick quote for postage!
Tell a friend. Enter their email address here!
Yuasa NP batteries utilise the latest advance design Oxygen Recombination Technology. Yuasa have applied their 80 years experience in the lead acid battery field to produce the optimum design of Sealed Valve Regulated Lead Acid batteries. Yuasa NP batteries are the most reliable batteries in the world, which is why industry choose Yuasa over any other battery for security, fire, emergency lighting and uninterruptible power source (UPS) applications.
SPECIFICATIONS
| WARRANTY | 12 Months |
| Name | NP7-6 (6V 7Ah) Yuasa General Purpose VRLA Rechargeable Battery |
| Code | NP7-6 |
| Literature | NP_Series march 09.pdf |
| Nominal voltage | 6 |
| AH | 7 |
| AH RATING | 20-hr rate Capacity to 1.75VPC at 20°C |
| Length | 151 |
| Width | 34 |
| Height over Terminals | 97.5 |
| Weight | 1.32 |
TERMINAL TYPE
| Terminal Type | F 4.7 |
| Storage (in fully charged condition) | -20°C to +60°C |
| Charge | -15°C to +50°C |
| Discharge | -20°C to +60°C |
| Capacity loss per month at 20°C (approx) | 3 |
| Standard Option | ABS (UL.94:HB) |
| Flame retardant option (FR) | ABS (UL94:V0) |
| Float charge voltage at 20°C | 2.275 (±1%) |
| Float charge voltage at 20°C | 2.275 (±1%) |
| Float Charge voltage temperature correction factor (for variations from the standard 20°C) | -3 |
| Cyclic (or Boost) charge at 20°C | 2.42 (±3%) |
| Cyclic (or Boost) charge at 20°C | 2.42 (±3%) |
| Cyclic Charge voltage temperature correction factor (for variations from the standard 20°C) | -4 |
| Cyclic (or Boost) charge current limit | 1.75 |
| 1 second | 210 |
| 1 minute | 48 |
| Measured at 1 kHz | 28 |
