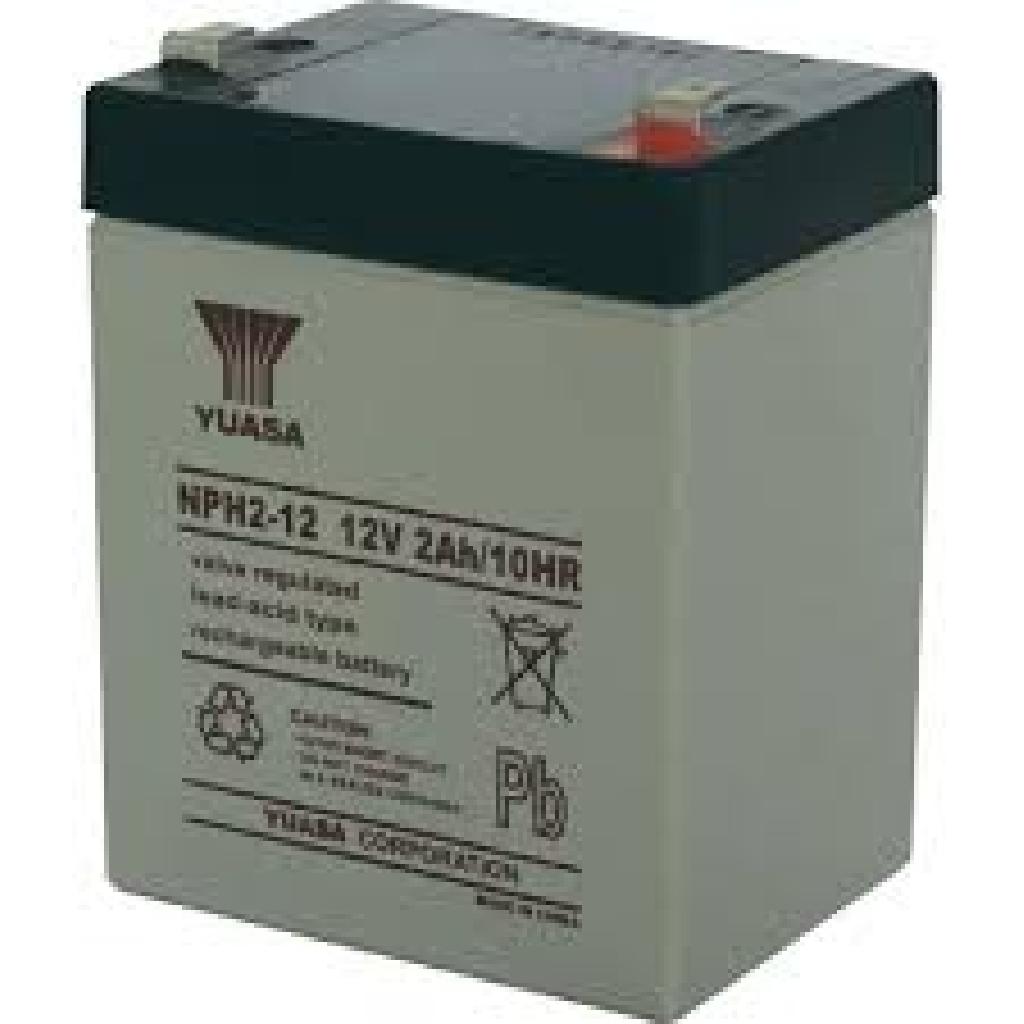

NPH2-12 (12V 2Ah) Yuasa High Rate VRLA Rechargeable Battery
£12.82 (ex vat)
£15.38 (inc vat)

1 in-stock.

Enter your postcode to get a quick quote for postage!

Tell a friend. Enter their email address here!

Yuasa NP, NPC and NPH batteries utilise the latest advance design Oxygen Recombination Technology. Yuasa have applied their 80 years experience in the lead acid battery field to produce the optimum design of Sealed Valve Regulated Lead Acid batteries. Yuasa NP batteries are the most reliable batteries in the world, which is why industry choose Yuasa over any other battery for security, fire, emergency lighting and uninterruptible power source (UPS) applications.


SPECIFICATIONS
WARRANTY12 Months
NameNPH2-12 (12V 2Ah) Yuasa High Rate VRLA Rechargeable Battery
CodeNPH2-12
LiteratureNPH2-12_UK
Nominal voltage12
AH2.02
AH RATING20-hr rate Capacity to 10.5V at 20°C
DIMENSIONS
Length68
Width51
Height84
Height over Terminals88
Weight0.84

TERMINAL TYPE
Terminal TypeF 4.7
OPERATING TEMPERATURE RANGE
Storage (in fully charged condition)-20°C to +60°C
Charge-15°C to +50°C
Discharge-20°C to +60°C
STORAGE
Capacity loss per month at 20°C (approx)3
CASE MATERIAL
Standard OptionABS (UL.94:HB)
Flame retardant option (FR)ABS (UL94:V0)
CHARGING
Float charge voltage at 20°C2.275 (±1%)
Float charge voltage at 20°C2.275 (±1%)
Float Charge voltage temperature correction factor (for variations from the standard 20°C)-3
Cyclic (or Boost) charge at 20°C2.42 (±3%)
Cyclic (or Boost) charge at 20°C2.42 (±3%)
Cyclic Charge voltage temperature correction factor (for variations from the standard 20°C)-4
Cyclic (or Boost) charge current limit 0.505
MAXIMUM DISCHARGE CURRENT
1 second60
1 minute20
IMPEDANCE
Measured at 1 kHz45

The following PDF(s) contain information pertaining to this product

NPH2-12_UK
