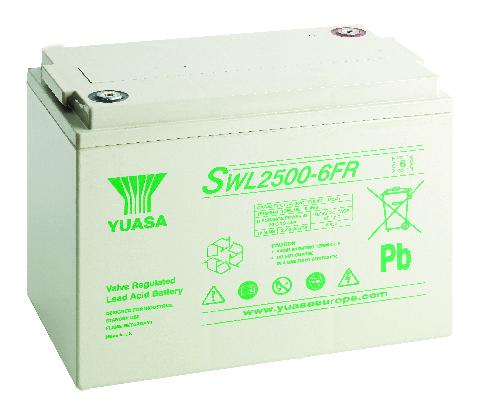

SWL2500-6FR 6V 184Ah) Yuasa High Rate VRLA Rechargeable Battery
Please contact us to get the latest price for this product

1 in-stock.

Enter your postcode to get a quick quote for postage!

Tell a friend. Enter their email address here!

SWL series valve regulated lead acid batteries are an enhanced NPL design resulting in an improved energy to density ratio, giving up to 40% extra discharge capacity. All other attributes and operational characteristics are the same, thereby maintaining the benefit of a common mechanical and electrical design for users of both products. SWL Series are the ideal choice of battery for uninterruptible power supply (UPS) and high rate discharge applications.


SPECIFICATIONS
WARRANTY12 Months
NameSWL2500-6FR 6V 184Ah) Yuasa High Rate VRLA Rechargeable Battery
CodeSWL2500-6FR
Nominal voltage6
AH184
AH RATING10-min rate Constant Power to 9.6V at 20°C
DIMENSIONS
Length297
Width168
Height231.5
Weight32.5

TERMINAL TYPE
Terminal TypeM8(F)
Torque6
OPERATING TEMPERATURE RANGE
Storage (in fully charged condition)-20°C to +50°C
Charge-15°C to +50°C
Discharge-20°C to +60°C
STORAGE
Capacity loss per month at 20°C (approx)3
CASE MATERIAL
Standard OptionABS (UL.94:HB)
Flame retardant option (FR)ABS (UL94:V0)
CHARGING
Float charge voltage at 20°C2.275 (±1%)
Float charge voltage at 20°C2.275 (±1%)
Float Charge voltage temperature correction factor (for variations from the standard 20°C)-3
Cyclic (or Boost) charge at 20°C2.42 (±3%)
Cyclic (or Boost) charge at 20°C2.42 (±3%)
Cyclic Charge voltage temperature correction factor (for variations from the standard 20°C)-4
Cyclic (or Boost) charge current limit 45
MAXIMUM DISCHARGE CURRENT
1 second1500
1 minute800
SHORT-CIRCUIT CURRENT & INTERNAL RESISTANCE
Internal resistance (according to EN IEC 60896-21)4.34
Short-Circuit current (according to EN IEC 60896-21)3369
IMPEDANCE
Measured at 1 kHz3
