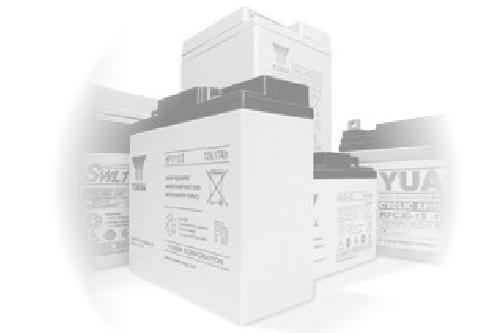

YPC100-12 (12V 100Ah) Yuasa General Use VRLA Rechargeable Battery
Please contact us to get the latest price for this product
1 in-stock.
1 in-stock.
Enter your postcode to get a quick quote for postage!
Tell a friend. Enter their email address here!
YPC100-12 Yuasa 12v 100Ah Rechargeable Battery - Ultra Performance
New AGM Technology
Yuasa YPC100-12 Batteries are one of the market leaders in manufacturing deep cycle batteries. Yuasa YPC100-12 - 12v 100Ah batteries are known for supreme quality and reliability, providing industry leading performance and long life, widely used for electric vehicles and other cyclic applications. These batteries feature low maintenance and valve regulated construction combined with heavy-duty plates and unique separator systems to deliver cyclic capability twice as long as conventional batteries, providing constant high performance and long life. For peace of mind these batteries are backed by full Manufacturer warranty support
Features
Supplied with 1 Year Manufacturer Warranty Support
Brand New Fresh Stock for Maximum Performance YPC100-12 Battery 12v 100Ah
Superior High Performance Battery - Supplied Fully Charged
Can be used to replace Yuasa NP100-12, Genesis NP100-12, Yuasa YC100-12, Yuasa Y100-12
Longer lifespan due to Heavy-duty plates and unique separator systems to deliver cyclic capability twice as long as conventional batteries
Quick Specs
Voltage = 12 Volts
Battery Capacity = 100 Ah
Battery Type = AGM Deep Cycle
Length = 330mm, Width = 173mm, Height = 212mm
Weight: 30 Kg
Terminal layout: Left: + Right: - Terminals on the edge nearest you
Warranty
1 Year manufacturer warranty
SPECIFICATIONS
WARRANTY | 12 Months |
Name | YPC100-12 (12V 100Ah) Yuasa General Use VRLA Rechargeable Battery |
Code | YPC100-12 |
Nominal voltage | 12 |
AH | 104 |
AH RATING | 20-hr rate Capacity to 10.8V at 20°C |
Length | 330 |
Width | 173 |
Height | 212 |
Height over Terminals | 220 |
Weight | 30 |
TERMINAL TYPE
Terminal Type | M8(F) |
Torque | 14.7 |
Storage (in fully charged condition) | -20°C to +60°C |
Charge | -15°C to +50°C |
Discharge | -20°C to +60°C |
Capacity loss per month at 20°C (approx) | 3 |
Standard Option | ABS (UL.94:HB) |
Flame retardant option (FR) | ABS (UL94:V0) |
Float charge voltage at 20°C | 2.275 (±1%) |
Float charge voltage at 20°C | 2.275 (±1%) |
Float Charge voltage temperature correction factor (for variations from the standard 20°C) | -3 |
Cyclic (or Boost) charge at 20°C | 2.42 (±3%) |
Cyclic (or Boost) charge at 20°C | 2.42 (±3%) |
Cyclic Charge voltage temperature correction factor (for variations from the standard 20°C) | -4 |
Cyclic (or Boost) charge current limit | 26 |
1 second | 1200 |
1 minute | 1040 |
Measured at 1 kHz | 4.9 |
